HitPay Product Guide and API docs.

Introduction

Embedded Payments allow seamless integration of payments directly into your platform without redirecting the users away. Two modes are available — pick based on the payment method and your preferred UX:

Mode	Parameter	Customer experience
QR Code	`generate_qr: true`	Customer scans a QR code rendered in your UI with their banking or wallet app
Direct Link	`generate_direct_link: true`	Customer is redirected to the payment provider’s page, then back to your site

Serving international customers? Once you’ve completed this setup, see Borderless QR to display real-time currency conversion for cross-border payments.

Live Demo

Try the embedded payments live demo to see QR code and direct link flows in action before you integrate.

Core Concept

The integration flow is the same for both modes — only the generate_* parameter and how you present the payment to the customer differ.

Create a Payment Request

Call POST /v1/payment-requests with either generate_qr: true or generate_direct_link: true.

Present to Customer

For QR: render the returned QR code in your UI. For direct link: redirect the customer to the provider URL.

Customer Completes Payment

The customer scans the QR code or pays on the provider’s page.

Handle Webhooks

payment_request.completed fires when payment succeeds. Validate and fulfil the order.

Supported Methods

Some methods support both modes — choose whichever fits your UI.

Payment Method	Code	QR	Direct Link
PayNow	`paynow_online`	✓
ShopeePay	`shopee_pay`	✓
QRIS	`doku_qris` (Indonesia), `ifpay_qris` (others)	✓
WeChatPay	`wechat_pay`	✓
PromptPay	`opn_prompt_pay`	✓
TrueMoney	`opn_true_money_qr`	✓
GrabPay	`grabpay_direct`	✓	✓
GrabPay PayLater	`grabpay_paylater`	✓	✓
UPI	`upi_qr`	✓
GCash (QR)	`gcash_qr`	✓
GCash (Direct Link)	`gcash`		✓
QRPH	`qrph_netbank`	✓
Touch ‘n Go	`touch_n_go`	✓	✓
DuitNow	`duitnow`	✓
Atome	`atome`	✓
VietQR	`vietqr_zalopay`	✓
ZaloPay	`zalopay`	✓	✓
ShopBack (QR)	`shopback_qr` (SG only)	✓
ShopBack (Direct Link)	`shopback` (SG only)		✓

Authentication

Before integration, it’s essential to understand how Hitpay APIs are authenticated. Hitpay utilizes API keys to grant access to the API. You can locate this key in your dashboard under “API keys.” Hitpay requires the API key to be included in all API requests to the server. This key should be placed in a header that follows the format shown below: X-BUSINESS-API-KEY: meowmeowmeow

$request->setHeaders(array(
  'X-BUSINESS-API-KEY' => 'meowmeowmeow',
  'Content-Type' => 'application/x-www-form-urlencoded',
  'X-Requested-With' => 'XMLHttpRequest'
));

API keys should be kept confidential and only stored on your servers. Do not store it on your mobile or web client

Step 1: Create a Payment Request

POST /v1/payment-requests

Request Parameters

Parameter	Type	Description
amount	string	Required. The amount to be paid.
currency	string	Required. The currency (e.g., `"sgd"`).
payment_methods[]	array	Required. The payment method. Only one method must be specified.
generate_qr	boolean	Set to `true` to generate QR code data.
generate_direct_link	boolean	Set to `true` to generate a provider redirect URL.
redirect_url	string	Required when using `generate_direct_link`. URL to redirect the customer after payment.
name	string	Optional. Customer name.
email	string	Optional. Customer email.
phone	string	Optional. Customer phone number.
purpose	string	Optional. Payment purpose.
reference_number	string	Optional. Your internal reference number.

Pass either generate_qr: true or generate_direct_link: true — not both in the same request and only one payment method.

QR Code
Direct Link

Example Request

{
  "amount": "123.00",
  "currency": "sgd",
  "payment_methods": ["paynow_online"],
  "generate_qr": true
}

Example Response


{
  "id": "9c262fb5-f3cd-4187-8c3e-fbe20730b9c6",
  "name": null,
  "email": null,
  "phone": null,
  "amount": "123.00",
  "currency": "sgd",
  "is_currency_editable": false,
  "status": "pending",
  "purpose": null,
  "reference_number": null,
  "payment_methods": ["paynow_online"],
  "url": "https://securecheckout.hit-pay.com/payment-request/@merchant/9c262fb5/checkout",
  "redirect_url": null,
  "allow_repeated_payments": false,
  "expiry_date": null,
  "created_at": "2024-05-28T14:37:11",
  "updated_at": "2024-05-28T14:37:11",
  "qr_code_data": {
    "qr_code": "00020101021226550009SG.PAYNOW010120210201605883W030100414202405281445315204000053037025406123.005802SG5905Merchant6009Singapore62290125DICNP17168782314914MWULPX63043561",
    "qr_code_expiry": null
  }
}

Example Request

{
  "amount": "50.00",
  "currency": "sgd",
  "payment_methods": ["grabpay_direct"],
  "generate_direct_link": true,
  "redirect_url": "https://merchant.com/payment/complete"
}

`direct_link` Response Object

Field	Type	Description
`direct_link_url`	string	Web redirect URL. Always present. Redirect the customer here.
`direct_link_app_url`	string \| null	App deep link for mobile app-to-app flow (e.g. `grab://...`). `null` if the provider doesn’t support it.
`expiry_time`	string \| null	ISO 8601 datetime when the link expires.

Example Response


{
  "id": "9c262fb5-f3cd-4187-8c3e-fbe20730b9c6",
  "name": null,
  "email": null,
  "phone": null,
  "amount": "50.00",
  "currency": "sgd",
  "status": "pending",
  "payment_methods": ["grabpay_direct"],
  "url": "https://securecheckout.hit-pay.com/payment-request/@merchant/9c262fb5/checkout",
  "redirect_url": "https://merchant.com/payment/complete",
  "direct_link": {
    "direct_link_url": "https://pay.grab.com/v2/pay?token=abc123...",
    "direct_link_app_url": null,
    "expiry_time": null
  },
  "created_at": "2026-04-22T15:00:00",
  "updated_at": "2026-04-22T15:00:00"
}

Step 2: Present to Customer

QR Code
Direct Link

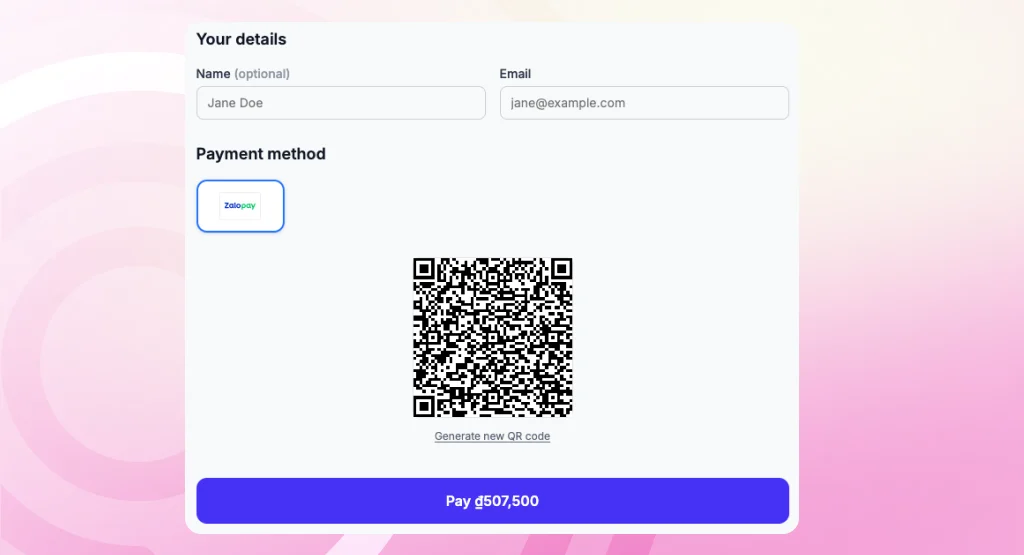

Use the qr_code_data.qr_code value from the response to render a scannable QR code in your UI.

Note for Sandbox Testing:In sandbox, the qr_code value may be a URL (e.g. https://securecheckout.sandbox.hit-pay.com/...) instead of a raw QR string. This is intended for testing — visit the URL directly or scan it with a standard QR reader.In production, qr_code is a raw payload string (e.g. a PayNow EMV string) that you should convert into a scannable QR code using a QR code library.

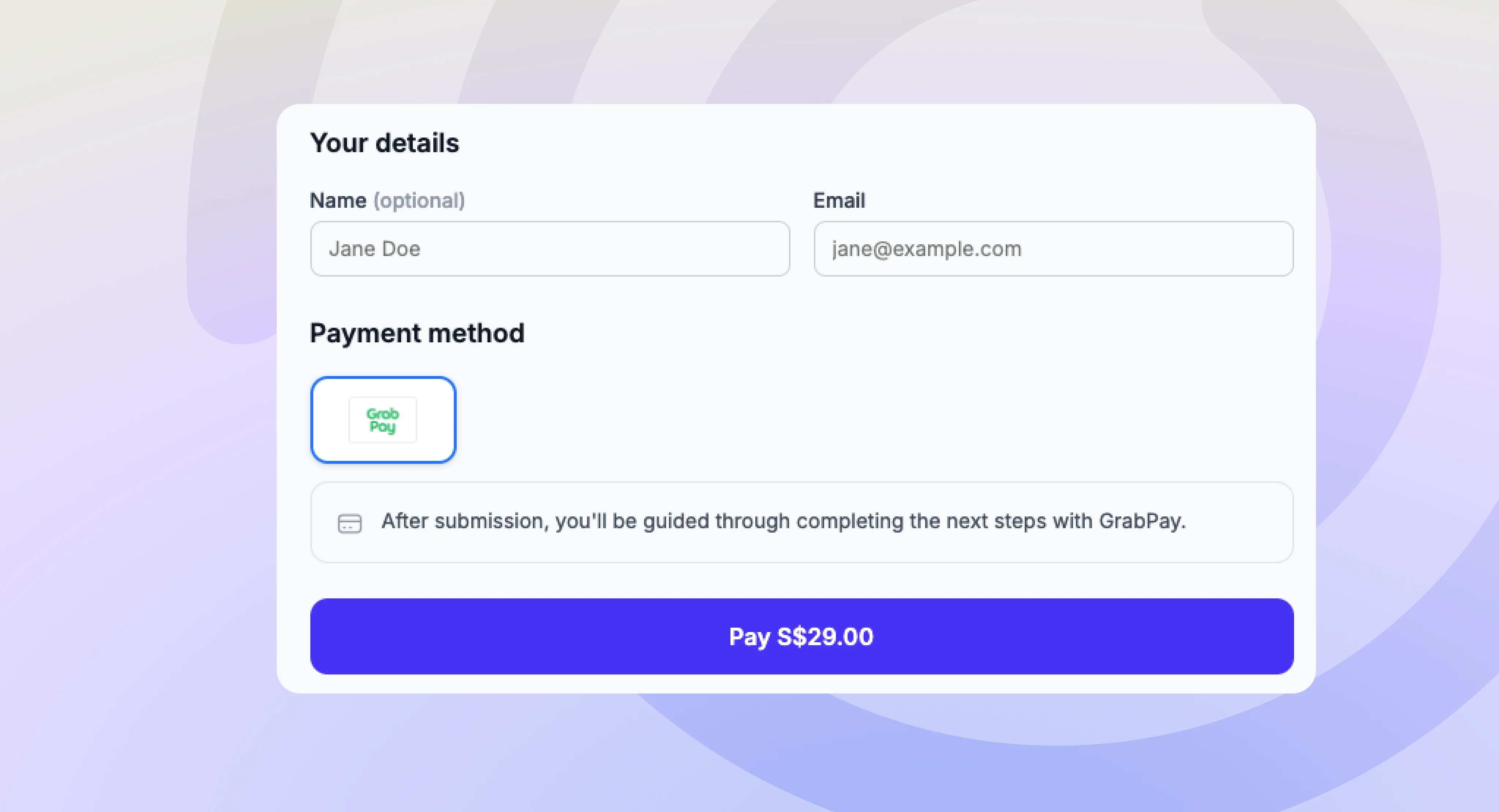

Redirect the customer to direct_link.direct_link_url. On mobile, use direct_link_app_url to open the provider’s native app directly if available.

window.location.href = response.direct_link.direct_link_url;

Step 3: Customer Completes Payment

The customer scans the QR code with their banking app, or completes payment on the provider’s page. For direct link payments, the provider redirects the customer back to your redirect_url with reference (payment request ID) and status query parameters:

https://merchant.com/payment/complete?reference=9c262fb5-f3cd-4187-8c3e-fbe20730b9c6&status=completed

Do not mark orders as paid based on the redirect alone — the URL can be triggered by anyone. Always use the payment_request.completed webhook to securely confirm payment.

Step 4: Handle Webhooks and Server Communication

After the payment is processed, handle webhooks to receive payment notifications and update the payment status in your system.

What is a Webhook?

A webhook is a POST request sent from HitPay’s server to your server about the payment confirmation. You must mark your order as paid ONLY after the webhook is received and validated.

Register Your Webhook

To receive payment notifications, register a webhook URL from your HitPay Dashboard:

Navigate to Developers > Webhook Endpoints in your dashboard
Click on New Webhook
Enter a name and your webhook URL
Select the payment_request.completed event
Save your webhook configuration

Webhook Payload

When a payment is completed, HitPay sends a JSON payload to your registered webhook URL with the following headers:

HTTP Header	Description
Hitpay-Signature	HMAC-SHA256 signature of the JSON payload, using your salt value
Hitpay-Event-Type	`completed`
Hitpay-Event-Object	`payment_request`
User-Agent	`HitPay v2.0`

Sample Webhook Payload

{
  "id": "9c262fb5-f3cd-4187-8c3e-fbe20730b9c6",
  "name": "John Doe",
  "email": "john@example.com",
  "phone": "+6512345678",
  "amount": "123.00",
  "currency": "SGD",
  "status": "completed",
  "purpose": "Order #12345",
  "reference_number": "REF123",
  "payment_methods": ["paynow_online"],
  "created_at": "2024-05-28T14:37:11",
  "updated_at": "2024-05-28T14:38:25",
  "payments": [
    {
      "id": "9c262fb5-a1b2-4c3d-8e9f-123456789abc",
      "status": "succeeded",
      "buyer_email": "john@example.com",
      "currency": "sgd",
      "amount": "123.00",
      "refunded_amount": "0.00",
      "payment_type": "paynow_online",
      "fees": "0.50",
      "created_at": "2024-05-28T14:37:11",
      "updated_at": "2024-05-28T14:38:25"
    }
  ]
}

Validating the Webhook

To ensure the webhook is authentic, validate the Hitpay-Signature header:

Receive the JSON payload and Hitpay-Signature from the request
Use your salt value (from the dashboard) as the secret key
Compute HMAC-SHA256 of the JSON payload using your salt
Compare the computed signature with Hitpay-Signature - they must match

function validateWebhook($payload, $signature, $salt) {
    $computedSignature = hash_hmac('sha256', $payload, $salt);
    return hash_equals($computedSignature, $signature);
}

// Usage
$payload = file_get_contents('php://input');
$signature = $_SERVER['HTTP_HITPAY_SIGNATURE'];
$salt = 'your_salt_from_dashboard';

if (validateWebhook($payload, $signature, $salt)) {
    $data = json_decode($payload, true);
    // Process the payment confirmation
    // Mark order as paid
} else {
    http_response_code(401);
    exit('Invalid signature');
}

FAQs

What about the 'webhook' parameter in the API?

The webhook parameter in the payment request API is deprecated and will be removed in a future version.Why the change?

The new registered webhook system supports JSON payloads with richer data
You can subscribe to multiple event types (not just payment completion)
Centralized management from your dashboard
Better scalability - one webhook URL handles all your payment requests

Migration:

Register your webhook URL in Settings > API Keys
Subscribe to payment_request.completed event
Update your webhook handler to accept JSON payloads
Remove the webhook parameter from your API calls

Webhook Signature Mismatch?

Possible reasons for signature mismatch:

Ensure you are using the correct salt value from the correct environment (Sandbox or Production)
Make sure you are computing the HMAC-SHA256 of the raw JSON payload
Verify the signature is being read from the Hitpay-Signature header

Facing Invalid Business API Key Error?

Possible reasons for this error:

You are using a production key in the sandbox or a sandbox key in production. Make sure the API base URL is correct.
You are missing headers. Ensure you include both the ‘Content-Type’ and ‘X-Requested-With’ headers.

How do I handle cancelled or abandoned QR code payments?

QR code payments (PayNow, GrabPay, etc.) cannot be cancelled once generated — unlike card payments, there is no cancel endpoint. Even if the user leaves your checkout page, they may have already scanned or screenshotted the QR code.Recommended approach:

When you generate a QR code, record the creation timestamp and treat the payment as "pending" on your end.
If you do not receive a successful payment webhook within 10–15 minutes of QR creation, you can safely assume the payment was abandoned and cancel the order on your side.

Why 10–15 minutes?

PayNow QR codes are valid for 5 minutes — this is the window in which the customer must scan the code.
However, once scanned, the customer's banking app may still allow them to complete the payment after the 5-minute mark.
A 10–15 minute buffer from QR creation accounts for this delay.

UX tip: If your platform has a "Cancel" button, you can dismiss the QR screen for a smoother user experience, but your backend should still listen for webhooks for the full buffer period in case the payment completes.

Production Checklist

Ensure the following before moving to production:

Change the base URL for all API calls to https://api.hit-pay.com/v1/
Complete payment method setup in production
Update API keys and Salt values from the production dashboard
Register your webhook URL in production

Why does my charges `webhook status` show as failed?

If you are using a payment plugin, after every successful payment, a webhook is sent to your store to acknowledge the payment confirmation. Your order is marked as paid through this webhook.A webhook status showing as "failed" indicates that Hitpay failed to communicate with your server. This can happen for the following reasons:

Your store may have a security feature that blocked Hitpay's request.
Your server was unavailable during this time.

To avoid this issue, ensure that you whitelist Hitpay's IP addresses:

Production: 3.1.13.32, 52.77.254.34
Sandbox: 54.179.156.147

For further details, please review your store's debug logs.
